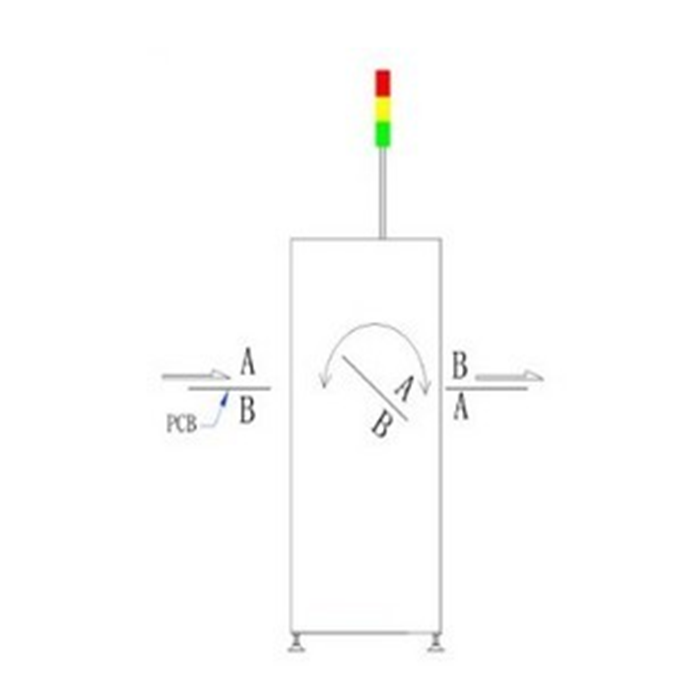

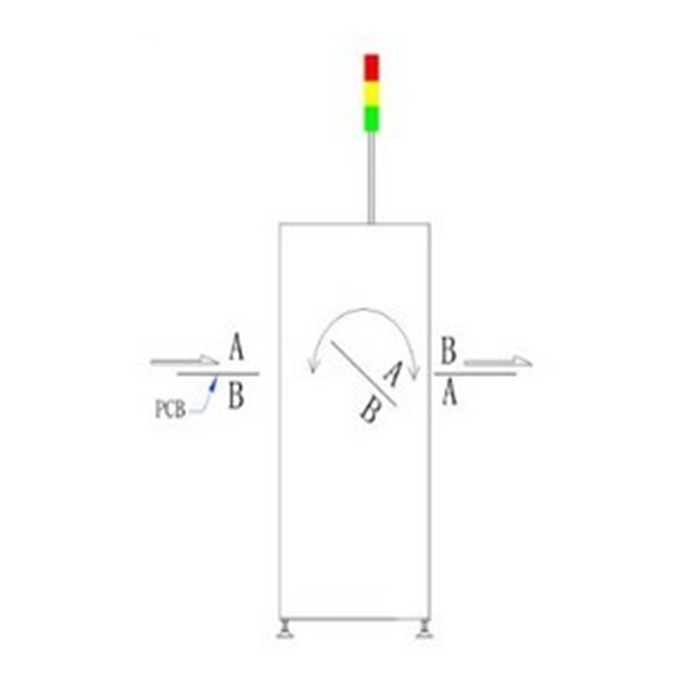

1.This unit is used to invert PCBs(180°).
2.Touch screen and PLC control.
3.Enclosed design with built-in torque limiter ensures highest level of safety.
4.Top cover can be opened for easy access to hardware during maintenance.
5.Steady and precise scaling.
6.Parallel and smooth width adjustment.
7.Minimize transmission clearance between conveyor.
8.Different lengths available upon request.
9.Compatible SMEMA interface.
| PF-250 | |
| Conveying height | 900±20㎜ adjustable |
| Guide rail width | width 50-280MM adjustable |
| Flippable PCB size | maximum L400mm*W280mm*H5mm |
| Flippable weight | maximum 1KG (2KG optional) |
| PCB board conveying speed | 0~4m/min |
| PLC control, display and control touch screen operation panel | |
| Conveying direction: | from right to left/from left to right |
| Power supply | 220V AC/50HZ/2A |
| Dimensions | L550㎜*W850㎜*H1350mm |
