1.This device is used to receive board SMT circuit board production line operation, suitable for receive NG board and OK board after soldering.
2. PLC + touch screenMan-Machine Operating Key Surface.
3. Frequency Conversion Lifting Device, Smooth Movement.
4 kinds of PITCH choices can set the step of receiving pcba.
5. Simple Width Adjustment Design, Quick and Flexible Line Change.
6. Four-point positioning of magazine.
7. Translational Differentiation of NG and OK pcba.
8. Anti-jamming board design of the receiving pcba protection system.
9. Compatible SMEMA interface.

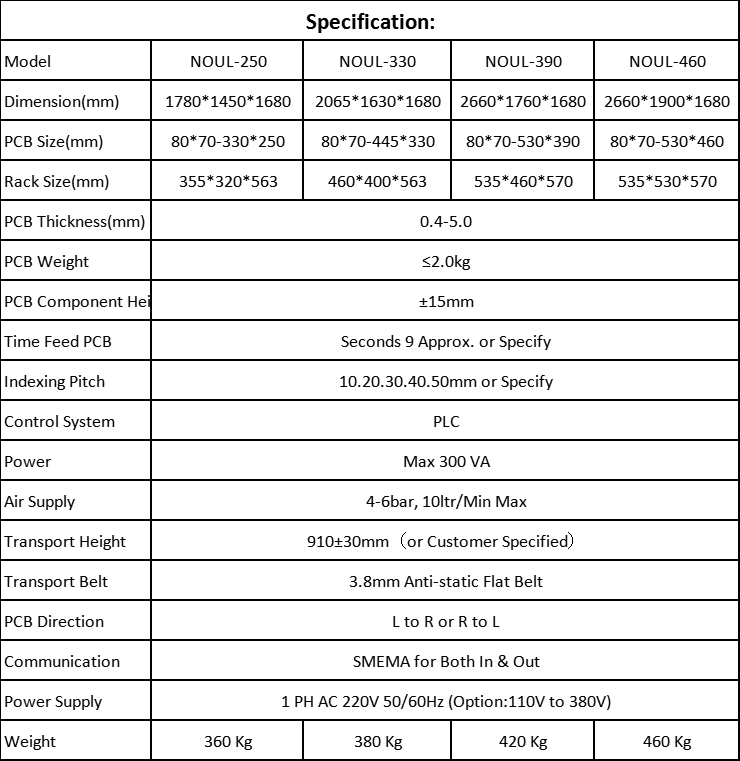

Specification: |
||||
|---|---|---|---|---|
| Model | NOUL‑250 | NOUL‑330 | NOUL‑390 | NOUL‑460 |
| Dimension(mm) | 1780*1450*1680 | 2065*1630*1680 | 2660*1760*1680 | 2660*1900*1680 |
| PCB Size(mm) | 80*70‑330*250 | 80*70‑445*330 | 80*70‑530*390 | 80*70‑530*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*570 | 535*530*570 |
| PCB Thickness(mm) | 0.4‑5.0 | |||
| PCB Weight | ≤2.0kg | |||
| PCB Component Height | ±15mm | |||
| Time Feed PCB | Seconds 9 Approx. or Specify | |||
| Indexing Pitch | 10.20.30.40.50mm or Specify | |||
| Control System | PLC | |||
| Power | Max 300 VA | |||
| Air Supply | 4‑6bar, 10ltr/Min Max | |||
| Transport Height | 910±30mm (or Customer Specified) | |||
| Transport Belt | 3.8mm Anti‑static Flat Belt | |||
| PCB Direction | L to R or R to L | |||
| Communication | SMEMA for Both In & Out | |||
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | |||
| Weight | 360 Kg | 380 Kg | 420 Kg | 460 Kg |
