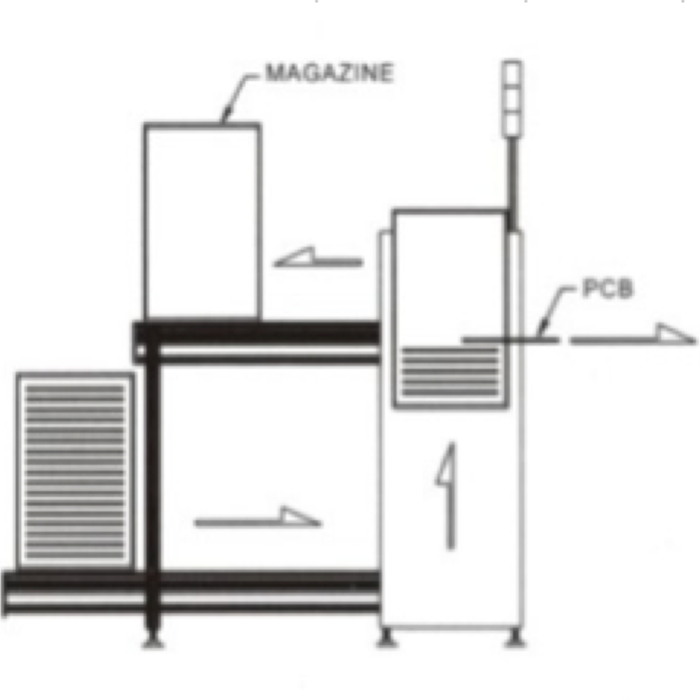

 【Origin Pic】 |
|
|
Mingrui
Mingrui
1. Strong,firm and stable design.
2. Touch screen and Siemens PLC control.
3. Top&bottom pneumatic clamps to secure magazine rack.
4. No PCB breakage guaranty because of special gas circuit design.
5. Automatical diagnosing fault code display function.
6. Wear-resistant cable and have long service life.
7. Compatible SMEMA interface.
| Specification | |||||
| Model | LD-250 | LD-330 | LD-390 | LD-460 | LD-610 |
| Dimension(mm) | 1330*765*1250 | 1650*845*1250 | 1800*909*1250 | 1800*970*1250 | 2065*1230*1250 |
| PCB Size(mm) | 50*50-330*250 | 50*50-445*330 | 50*50-530*390 | 50*50-530*460 | 50*50-610*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*570 | 535*530*570 | 630*530*570 |
| Time Feed PCB | Seconds 6 Approx. or Specify | ||||
| Indexing Pitch | 10.20.30.40mm or Specify | ||||
| Control System | PLC | ||||
| Power | Max 300 VA | ||||
| Air Supply | 4-6bar, 10ltr/Min Max | ||||
| Transport Height | 900±20mm（or Customer Specified） | ||||
| PCB Direction | L to R or R to L | ||||
| Communication | SMEMA for Both In & Out | ||||
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | ||||
| Weight | 160 Kg | 220 Kg | 280 Kg | 340 Kg | 350 Kg |
