1.This device is used to receive board SMT circuit board production line operation, suitable for receive NG board and OK board after soldering.
2. PLC + touch screenMan-Machine Operating Key Surface.
3. Frequency Conversion Lifting Device, Smooth Movement.
4. kinds of PITCH choices can set the step of receiving pcba.
5. Simple Width Adjustment Design, Quick and Flexible Line Change.
6. Four-point positioning of magazine.

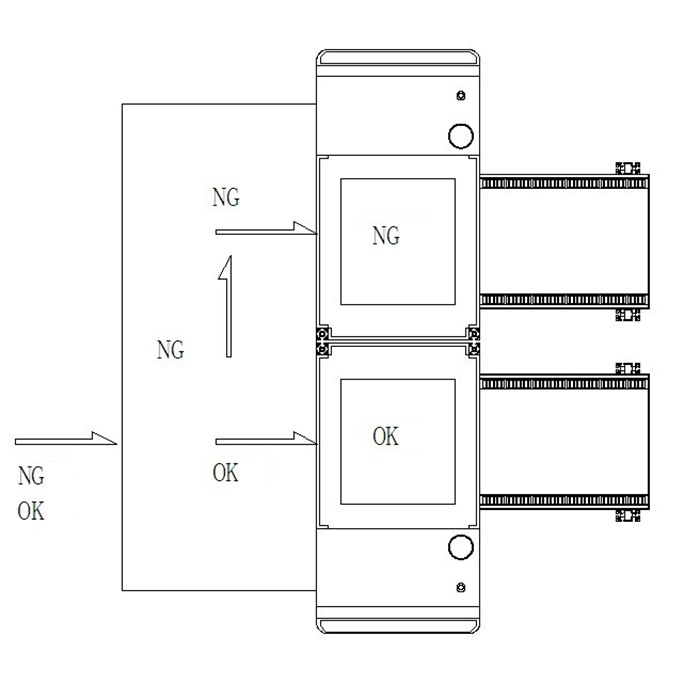

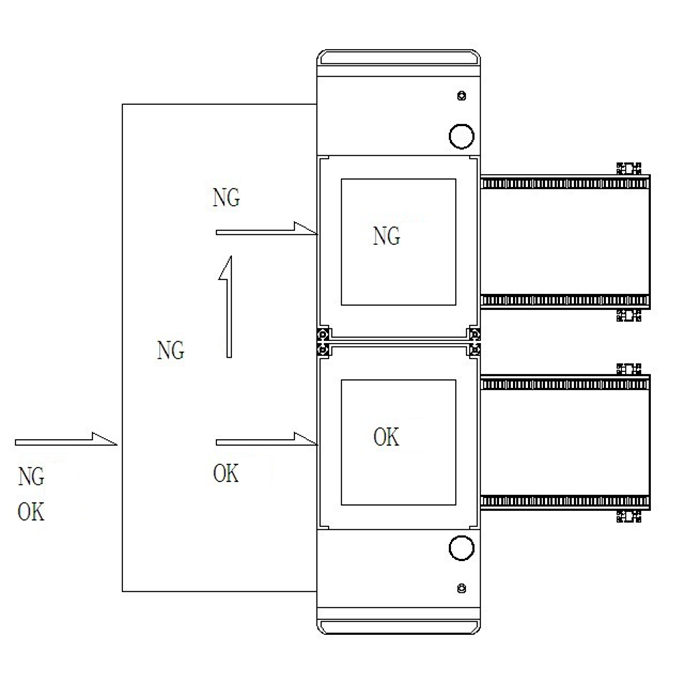

7. Translational Differentiation of NG and OK pcba.
8. Anti-jamming board design of the receiving pcba protection system.
9. Compatible SMEMA interface.
| Specification | ||||
| Model | NOUL-250 | NOUL-330 | NOUL-390 | NOUL-460 |
| Dimension(mm) | 1780*1450*1680 | 2065*1630*1680 | 2660*1760*1680 | 2660*1900*1680 |
| PCB Size(mm) | 80*70-330*250 | 80*70-445*330 | 80*70-530*390 | 80*70-530*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*570 | 535*530*570 |
| PCB Thickness(mm) | 0.4-5.0 | |||
| PCB Weight | ≤2.0kg | |||
| PCB Component Height | ±15mm | |||
| Time Feed PCB | Seconds 9 Approx. or Specify | |||
| Indexing Pitch | 10.20.30.40.50mm or Specify | |||
| Control System | PLC | |||
| Power | Max 300 VA | |||
| Air Supply | 4-6bar, 10ltr/Min Max | |||
| Transport Height | 900±20mm（or Customer Specified） | |||
| Transport Belt | 3.8mm Anti-static Flat Belt | |||
| PCB Direction | L to R or R to L | |||
| Communication | SMEMA for Both In & Out | |||
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | |||
| Weight | 360 Kg | 380 Kg | 420 Kg | 460 Kg |
