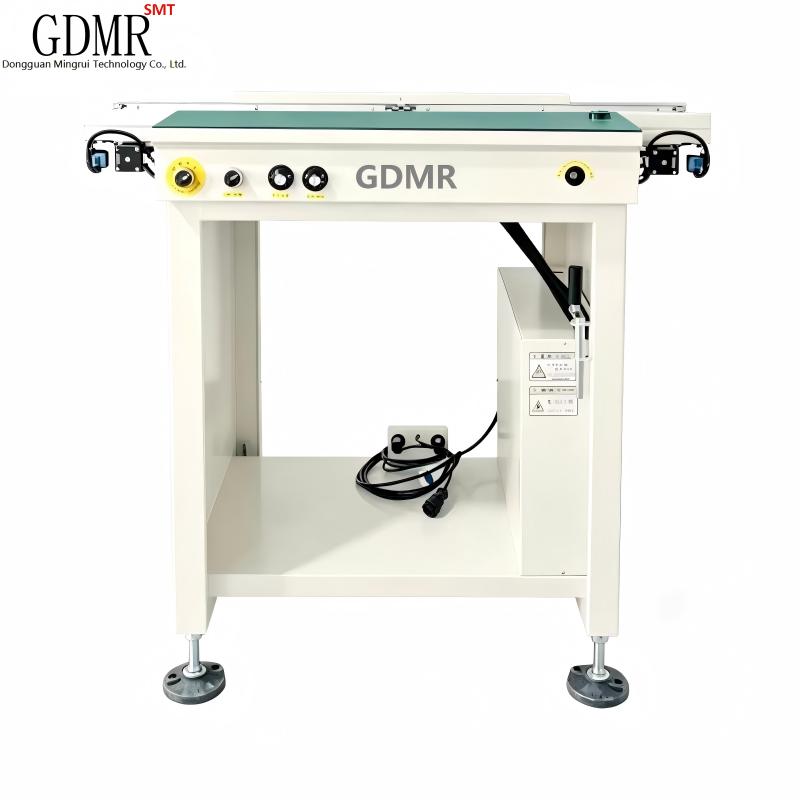

 【Origin Pic】 |
|
|
|
Mingrui
Mingrui
1.Modular design, optional assembly as per client’s requirement.
2.Rugged steel design, improves equipment stability .
3.Smooth stainless steel screw to adjust the width of the rail.
4.Variable speed control.
5.Circuit board testing mode.
6.Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7.Heavier bottom design, not easily shift.
8.Machine length can be customized.
9.Compatible with SMEMA interface.
*: Option: Dual rail
| Specification | |||||||||||
| Model | SC-500 | SC-600 | SC-1000 | SC-1200 | SC-1500 | SC-2000 | |||||
| Rail Length(mm) | 500 | 600 | 1000 | 1200 | 1500 | 2000 | |||||
| Dimension(mm) | 500*660*950 | 600*660*950 | 1000*660*950 | 1200*660*950 | 1500*660*950 | 2000*660*950 | |||||
| PCB Width | 50 to 350 mm | ||||||||||
| PCB Direction | L to R or R to L | ||||||||||
| Speed | Adjustable | ||||||||||
| Switch | Foot Switch | ||||||||||
| Control System | Industrial Control Module System（Panasonic PLC Option） | ||||||||||
| Lighting | Optional | ||||||||||
| SOP Rack | Optional | ||||||||||
| Platform Material | ESD Rubber Mat | ||||||||||
| Communication | SMEMA for both in & out | ||||||||||
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | ||||||||||
| Weight | 50 Kg | 50 Kg | 55 Kg | 85 Kg | 125 Kg | 150 Kg | |||||
