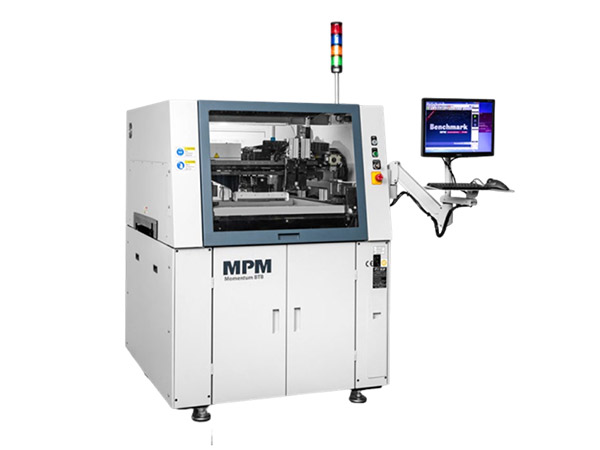

The tin deposition printing machine is the core and key equipment of the SMT surface mount production line, mainly used for the precise tin coating of the solder pads on PCB circuit boards. Its working principle is to use the steel mesh corresponding to the circuit holes, through the uniform squeezing of the scraper, to make the tin deposition pass through the holes of the steel mesh and be evenly deposited on the PCB solder pads. This is the basis for the subsequent component mounting and reflow soldering. The printing accuracy directly determines the soldering yield and production quality of electronic products. Currently, in the industry, it is mainly divided into manual, semi-automatic and fully automatic three types, which are adapted to different production scenarios.

The core advantages of the Xiyuyin Printing Machine are very prominent. Firstly, the printing accuracy is stable and controllable. The high-end fully automatic models are equipped with visual alignment and closed-loop pressure control systems, achieving a printing accuracy of ±20um, which can meet the production requirements for precision chips and micro-components, and is suitable for high-end fields such as automotive electronics and medical equipment. Secondly, the production adaptability is strong. The fully automatic models can achieve continuous automated operations, significantly increasing production capacity; the manual and semi-automatic models have simple structures and are easy to debug, making them suitable for small-scale trial production and research and development prototyping. At the same time, the equipment operation consistency is high, effectively avoiding problems such as uneven thickness of manual coating, offset, and mixed printing, and significantly reducing the defect rates of incomplete soldering and consecutive soldering.

This equipment also has obvious shortcomings. The purchase and operation costs of the fully automatic tinplate printing machine are high. The initial investment is large, and the equipment structure is very precise. It has strict requirements for the temperature and humidity, as well as the cleanliness of the production workshop. The usage threshold is also relatively high. In addition, the automatic model is suitable for fixed plate type production. When frequently changing product models, the steel mesh debugging and parameter calibration take a long time, resulting in insufficient flexibility. While the manual and semi-automatic models have low costs, they highly rely on the experience of the operators. The precision repeatability and production capacity are poor during batch production, and they cannot meet the requirements of large-scale and precision production. Overall, the tinplate printing machine is an indispensable core equipment in the electronics manufacturing industry. Enterprises can select models based on production scale and product precision requirements, balance costs, efficiency and quality, and maximize the value of the equipment.
